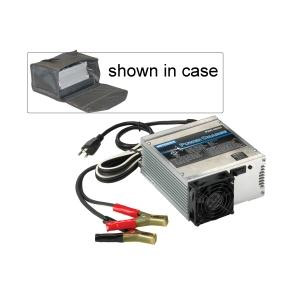

PSC POWER SUPPLY / BATTERY CHARGER WITH CASE
- Converts 120V AC line input into a virtually noise-free nominal 13.6VDC output
- As a charger, the PSC unit delivers current up to the rated value to charge any 12V lead-acid battery as needed
- Once battery is charged, the PSC tapers current to operate as a regulated power supply that will sustain accessory loads and offset parasitic drain
- Reverse connection, brown-out, over-current, and over-temperature protections
- Same platform required by Audi, Jaguar, Land-Rover, VW, and Volvo; also approved by Daimler-Chrysler, Ford, GM, and Mercedes-Benz
- Advanced switch-mode design
- Provides a cleaner, more reliable power source than using a standard charge
- Fully-regulated DC output prevents overcharging of the battery and provides precise control to maintain the necessary battery voltage during complex service and reflash
- Reverse battery polarity protection via replaceable fuses
- Brownout input protection
- Over-current protection; cycle-by-cycle peak limiting and rated current-limiting to maximize the life of the converter
- Over-temperature protection
- Quiet, small, and compact for portability
- Commercial design and heavy-duty internal components ensure years of continuous use
- Unique proportional fan control circuit
- Sets the fan speed directly proportional to the converters internal ambient temperature
- Enables the fan to turn on and off very slowly, minimizing unwanted fan-starting noise
- High quality, detachable cables for easy field service
| MDTPSC-550SKIT | PSC Power Supply / Battery Charger with Case |
