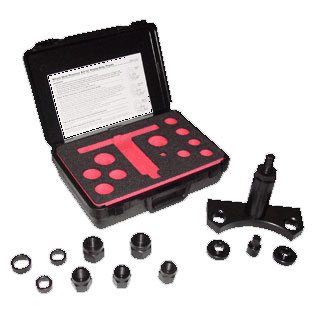

HEAVY-DUTY TRUCK WHEEL STUD REMOVER AND INSTALLER SET

• Used to push out button head serrated type wheel studs used on medium and heavy-duty trucks, buses, and motor coaches.
• The HD Truck Wheel Stud Remover Kit fits the most common bolt circle on the market (10-hole 11.25" bolt circle) which covers 85-95% of the market!
• This tool does not require a hydraulic power pack.
• Used to remove damaged and broken studs, as well as studs that have broken off shear with the hub face.
• Tool consists of a base plate and housing that mount to the truck's hub using the adjoining two wheel studs.
• Remover tool accurately self centers over the damaged stud/s.
• The crew shaft and screw shaft cap can be driven with a 3/4" socket and pneumatic impact wrench.
• M22 adapter bushings allow the base plate to be mounted to a "hub piloted mounting" type hub.
• Can be used to remove studs up to 1-1/8" in diameter and up to 4-1/4" of stand out length.

APPLICATIONS

• 10-hole 11.25" BC 8.73" hub – truck, class A RV
• 10-hole 11.25" BC 8.67" hub – bus
• 10-hole 285.75mm BC 220.1mm hub – truck, class A RV
• These installers are used to install button head wheel studs. The installers pull the stud into the drive flange or hub without damage to the threads.
• 1.875" long and internally threaded.
• The kit contains 1 ea of the following components:
• 1-1/8"-16 Right Hand Threaded Installer
• 1-1/4" I.D. Washer for 1-1/8"-16 Installer
• 1-1/8"-16 Left Hand Threaded Installer
• 1-1/4" I.D. Spacer for 1-1/8"-16 Installer
• 3/4"-16 Right Hand Threaded Installer
• 7/8" I.D.Washer for 3/4"-16 Installer
• 3/4"-16 Left Hand Threaded Installer
• 7/8" I.D. Spacer for 3/4"-16 Installer
• M22-1.5 Installer
• 1" I.D. Washer for M22-1.5 Installer
• 1" I.D. Spacer for M22-1.5 Installer
• Kit also contains (3) three extra washers (one for each adapter size) to cover loss or breakage.

Uasge

• 3/4"-16 installers can be used on the following: Ford trucks (1955-1977), GMC trucks (1956-1972) and all heavy-duty trucks with Budd Wheel Systems to present.
• M22-1.5 Installer can be used with any 1-1/2" 6-point socket or wrench, and can be used on late model heavy-duty trucks with center mount rims.
• 1 1/8"-16 Installer can be used with any 1-3/4" 6-point socket or wrench, and can be used on late model heavy-duty trucks with Budd Wheel Systems to present.
