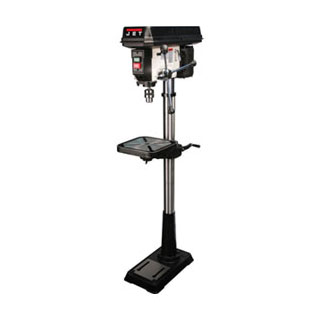

15 INCH 3/4 HP, 115V FLOOR MODEL DRILL PRESS

• Cast iron head
• Large quill allows greater accuracy
• Table tilts 45 degrees
• Large ground steel column diameter for maximum head and table support
• Hinged metal belt and pulley cover
• Accurate depth stop displays inch/mm and has quick set bolt for fast, accurate adjustments
• 5/8" drill chuck and arbor

Specifications

• Motor: 3/4 HP, 115V, 1 Ph,
• Number of Spindle speeds: 16
• Range of Spindle Speeds (RPM): 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1440, 1630, 1820, 2380, 2540, 3630 Spindle Tape: 2 MT
• Quill Diameter: 1-7/8"
• T-Slots Number and Size: N/A
• Column Diameter: 2-7/8"
• Base Dimensions (LxWxH): 11" x 19-1/2"
• Drilling Capacity Cast Iron: 5/8"
• Drilling Capacity Mild Steel: 1/2"
• Quill Travel: 3-1/8"
• Distance Base to Spindle: 48-3/4"
• Table Size: 10" x 10"
• Chuck Size: 5/8"
• Drills to Center of Circle: 15"
• Spindle Distance to Base: 48-3/4"
• Swing: 15"
• Base Work Table: 11" X 19-1/2"
• Spindle Travel: 3-1/8"
• Table Dimensions: 10" X 10"
• Overall Dimensions: 26" X 13-3/8" X 63-1/2"
• Height: 63.5"
• Width: 13.375"
• Length: 26"
