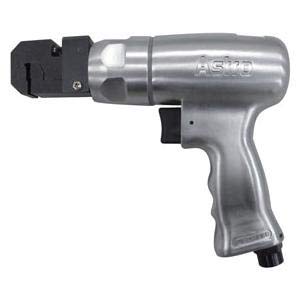

ONYX PISTOL GRIP PUNCH/ FLANGE TOOL
- Punch designed for easy replacement
- Performs hole punching and panel crimping
- Features a rotating head for convenient use
- Every pull of the lever delivers a single punch or a single flange crimp with precision control
- Forms an offset crimped edge on sheet metals for no-bump lap welds
- Lightweight
- Durable construction
- Reduces metal fabrication time in half
- Specifications:
- Punch Capacity: 1.6mm (1/16")
- Crimping Capacity: 1.6mm (1/16")
- Piston Stroke: 5/32" (4mm)
- Overall Length: 7.87" (200mm)
- Net Weight: 2.47lbs. (1.12kg)
- Air Inlet Thread NPT: 1/4"
- Air Hose I.D. Size: 3/8" (10mm)
- Avg. Air Consumption: 4cfm
- Air Pressure: 90-120psi (6.21-8.28 Bar) flat and curved surfaces
| AST605PT | with 5.5mm Punch |
| AST608PT | with 8mm Punch |
All descriptions and specifications subject to change without notice. Items may not be exactly as illustrated.
